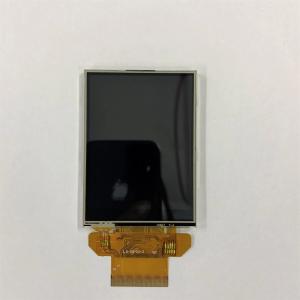

2.8 Inch TFT LCD Module 320x240 Resolution RGB Interface

MOQ : 500

Price : 6.78

Model NO. : RYTPQ28NN08-02

Aspect ratio : 4:3

Optimum Resolution : 320*240

Response Time : 25ms

Interface Type : RGB

Resolution : 320X3(RGB)X240

Module Size : 50.2(W)X69.3(H)X4.9(D)

Active Area : 43.2(H) X57.6(V)

Outline Dimension : 50.2(W) X 69.3(H) X 4.0(D)

Pixel Arrangement : RGB-Vertical Stripe

Touch Panel : 8-Wire CTP

Drive IC : Ili9341V

Display Size : 2.8 Inch

Backlight Type : LED

Production Capacity : 300K/M

Contact Now

2.8 Inch TFT Display | RYTPQ28NN08-02

Module size: 50.2(W)x69.3(H)x4.9(D)
Driver: ILI9341V
LVDS, White LED backlight, IPS, Wide temp, Transmissive, Capacitive Touch Screen, HDMI connection, CTP Driver: ILI9341V RoHS Compliant

1. IPS or 12 o'clock display screen.
2. Customized :Logo,Touch Button,Silk-Printing,Mirror Cover Lens,Shape/Hole
3. Anti-Glare/Anti-Finger/ Anti-Reflective/Waterproof/Gloves Touch Available
4. Supply TFT/Touch Panel/touch display module(TFT+CTP)

ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!

WARRANTY

Royal Display offers the original purchaser who has purchased a product from the lcdmoduletft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
